High Speed Roofing Corrugated Sheet Roll Forming Machine 37kw 0 - 35 M / Min

Name: High Speed Roofing Corrugated Sheet Roll Forming Machine 37kw 0 35 M Min
Brand: Saibo
Price: 1 USD

Brand Name : Saibo

Model Number : YX17.5-73.730

Certification : CE/ISO

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : T/T or L/C

Supply Ability : 300 sets per year

Delivery Time : 70 working days after received deposit

Packaging Details : Suitable for ocean shipment

Product Name : Corrugated Roll Forming Machine

Power : 37KW+11kw

Size Of purlin : YX17.5-73-730

Steel thickness : 0.18-0.3mm

Roller material : 45# forge steel, surface with chrome

station : About 24 stations

Productivity : 0-35m/min

Drive : By gear box

Voltage : 380V 50Hz 3phases (Customized)

Container need : 2X 40HQ container

Contact Now

Corrugated Panel Roll Forming Machine

1. Components of machine:

1	10T hydralic decoiler	1set
2	10T coil car	1 set
2	Feeding device	1set
3	Main roll forming machine	1set
4	Track cutting system	1set
5	Controlling system	1set
6	Auto stacker	1set

2. Specification of the material

1	Suitable Material	GI/PPGI, 550Mpa
2	Width of the raw material	895mm(+10mm/-15mm)
3	Thickness	0.18-0.3mm

3. Machine Detailed Parameters

1	Roll Forming Machine	YX17.5-73-730
2	Machine structure	Cast iron structure
3	Total power	Motor power-37kw Hydraulic power-11kw with storage tank and cooling system
4	Roller stations	About 24 stations
5	Productivity	0-35m/min
6	Drive system	By gear box
7	Diameter of shaft	￠100mm solid shaft
8	Voltage	380V 50Hz 3phases (Customized)
9	Color Of The Machine	Bule and yellow
10	Deliver time	70 days
11	Terms Of Payment	30%T/T 70% pay before shipment

4. Profile drawing

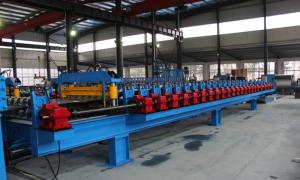

High Speed Roofing Corrugated Sheet Roll Forming Machine 37kw 0 - 35 M / Min

5. The Chart of Process Flow

Hydraulic Uncoiler—Roll Forming—Track cutting—Auto stacker

6. Specification of Components

(1) 10T Hydraulic Un-coiler

Width of feeding: 1250mm
Capability: 10 Ton
Inter diameter: 470-520mm
Maximal out diameter: 1500mm
Working speed: 0--45m/min adjustable
Main motor power: 7.5KW AC motor
Hydraulic power: 5.5kw

(2) 10T coil car

Coil weight (Max): 10 Ton
Working by hydraulic pressure: 8-12Mpa with connect with the uncoiler hydraulic unit
Working lift journey: Maximal 250mm
Working function: forward and reverse movable
Move journey: maximal 3 meters

(3) Main Roll Forming Machine

Roller material:ASTM1045 chrome plated surface with chrome
Shaft diameter: ￠100mm material: SAE1045 with quenching and tempering

(4) Machine structure

Main frame by 350H beam welding
Machine structure: cast iron

(5) Track cutting system

Cutting after forming: Cut the sheet after roll forming to required length
Cutting motion: The main machine won’t stop when cutting, continuous tracking cutting
Adopt servo motor and ball screw to make the speed and size more stable
Servo power: 2.9kw
Material of blade: CR12with heat treatment
Length measuring: Automatic encoder length measuring
Tolerance of length: 3m+/- 1.5mm
Quantity: 1

(5) Computer Control Cabinet

Hydraulic power: 11kw with storage tank and air cooling system
Working pressure: 12Mpa adjustable
Solenoid valve: 1 group
Hydraulic oil: 46# hydraulic oil
PLC: Panasonic or customerization
